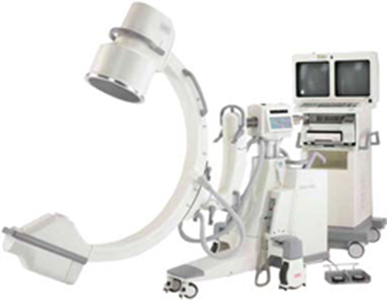

GE OEC 9800 Mobile C-Arm

SKU: 122
Posted in .

The GE OEC 9800 C-Arm System is the most popular c-arm in the world. Noted for its durability, the OEC 9800 is quite versatile having been designed for multiple applications. The OEC 9800 can be used for Pain Management, Orthopedics, Vascular, Neurovascular and Cardiac applications. Highlights include:

  • Superb image quality from GE Healthcare’s proprietary image I.Q.
  • Clinical design which is ideal for a wide range of applications
  • Improved efficiency thanks to a simple user interface
  • SMART options – SmartMetal, SmartView and SmartWindow help perfect your technique in challenging situations
  • Low dose features that ensure the right image at the right dose

Inquire All Models


Specifications


Generator:
  • 60kHz high frequency
  • 15kW full-wave
  • Up to 120kVp
  • Up to 75mA for radiographic film exposure
  • Continuous fluoro boost mode up to 20mA
  • Pulsed fluoro mode
  • Pulsed fluorography mode up to 40 mA (optional)
  • Full power from outlet:
    • 50 Hz or 60 Hz
    • 100V-15A to 240V-10A
  • Patented energy buffer design

X-Ray Tube:
  • Rotating anode X-ray tube
  • 0.3mm and 0.6mm focal spots
  • Anode heat capacity: 300,000 HU
  • Anode cooling rate: 60,000 HU/min
  • Housing heat capacity: 1,600,000 HU
  • Anode diameter: 3.1″
  • Anode angle: 10°
  • X-ray tube cooling fan (Vascular, Neurovascular & Cardiac units)

Collimator:
  • Iris collimation with dual opposing semitransparent leaf shutters allow elliptical, round and rectangular collimation
  • Minimum beam size < 5 X 5 cm2
  • Iris and shutters are continuously variable
  • All functions remotely controlled from the C-Arm control panel

Fluoroscopy Mode:
  • Focal spot: 0.3 mm
  • kVp range: 40 – 120 kVp
  • mA range: 0.2 – 10 mA normal mode
  • mA range: 0.2 – 20 mA continuous fluoro boost mode
  • Auto and manual modes
  • Continuous, one-shot or pulsed operation
  • ABS varies mA, kVp and camera gain
  • User specific ABS tables

Pulsed Fluoro Mode:
  • Focal spot: 0.3 mm
  • kVp range: 40 – 120 kVp
  • mA range: 0.2 – 40.0 mA
  • Pulse rate: 1, 2, 4, or 8 pulses per second
  • Pulse width: 30 or 50 milliseconds
  • Computer controlled ABS, mA, kVp and camera gain

Pulsed Fluoroscopy Mode (Optional):
  • Focal spot: 0.3 mm
  • kVp range: 40 – 120 kVp
  • mA range: 0.2 – 40.0 mA
  • Pulse rate: 1, 2, 4, or 8 pulses per second
  • Pulse width: 30 or 50 milliseconds
  • Computer controlled ABS, mA, kVp and camera gain

Digital Spot Mode (Optional)
  • Standard with the Expanded Surgical Platform (ESP)
  • Enhanced digital fluorographic oneshot with 12 mA boost
  • Automatically terminates exposure and stores enhanced image to storage archival disk

Radiographic Mode
  • Focal spot: 0.3 mm or 0.6 mm
  • Focal spot automatically selected
  • 0.3 mm – mAs range: 1 – 100 mAs
  • 0.6 mm – mAs range: 110 – 300 mAs
  • kVp range: 50 – 120 kVp

Video Imaging System


9″ Image Intensifier (optional):
  • Tri-mode 9″/6″/4.5″ (23cm/15cm/11cm) image intensifier
  • Minimum central resolution (at the monitor):
    • 9″: 1.4 lp/mm
    • 6″: 2.0 lp/mm
    • 4.5″: 2.4 lp/mm
  • DQE: 65% (typical)

12″ Image Intensifier (optional):
  • Tri-mode 12″/9″/6″ image intensifier
  • Minimum central resolution (at the monitor):
    • 12″ (31cm): 1.0 lp/mm
    • 9″ (23cm): 1.3 lp/mm
    • 6″ (15cm): 1.6 lp/mm
  • DQE: 65% (typical)

Video Camera:
  • High resolution CCD camera
  • Full frame capture
  • 360° motorized rotation
  • On-screen orientation indicator (realtime feedback without fluoro)
  • Left-right image reversal
  • Top-bottom image reversal
  • Negative mode
  • Video signal: Standard RS 170A 60 Hz, 525 lines
  • Aspect ratio: 4:3
  • Computer controlled features:
    • Gain
    • Blanking
    • Camera iris

Video Display:
  • Dual 16″ square, black etched, anti-glare, anti-static
  • 525 lines/frame – 512 pixels
  • Ambient room light sensor
  • Multi-LED X-ray “ON” indicator
  • Remote window/level controls

Configuration Software Options


GSP
  • General Surgical Package

ESP
  • Expanded Surgical Package (optional 8 Frames Per Sec)

Vascular Package
  • (8/15 Frames Per Sec)

NeuroVascular Package
  • (30 Frames Per Sec)

Cardiac Package
  • (30 Frames Per Sec)

Super-C: (optional):
  • Adds Extra 7″ Of Depth To Arc Of C-Arm
  • Allows 148 Degrees Of Orbital Rotation
  • Not Available With 12″ Image Intensifier

Additional Features


Hardcopy Options:
  • Thermal printer
  • External DICOM box
  • Laser aiming device (optional)

C-Arm Dimensions:
  • Height: 68″/86″ (1734 / 2191 mm)
  • Width: 33″ (838 mm)
  • Length: 78″ (1994 mm)
  • Weight: 720 lbs.

Workstation Dimensions:
  • Height: 64 in (1632 mm)
  • Width: 27 in (692 mm)
  • Depth: 27 in (692 mm)
