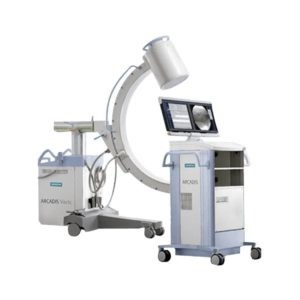

Siemens Arcadis Varic

Arcadis Varic Description:

Focused on improving everyday practice and solely led by your needs, ARCADIS Varic incorporates numerous unique to-the-point solutions. From image quality to operability, from versatility to efficiency, the groundbreaking features of ARCADIS Varic set new benchmarks for a Siemens C-Arm – with outstanding functionalities that make perfect imaging a snap and an overall ergonomic concept that redefines your clinical workflow in many fields of practice.

ARCADIS Varic:

• Precise imaging and perfect visualization
• Easy operation
• Improved clinical workflow
• Maximum flexibility in data handling
• Truly digital navigation with NaviLink 2D
• Perfectly thought-out and fully digital for outstanding image quality
• High performance for demanding applications
• Making acquisition a snap with EASY
• Uncompromising performance in visualization
• Straightforward operation right from the start

Buy / Sell All Models

Siemens Arcadis Varic C  Arm Specifications

C-Arm

• Reverse position (C-ARM): Yes
• Rotation (C-ARM): 130 ° (+90/-40)
• Depth: (PA GANTRY): 29 in., 73 cm.
• Free space: (C-ARM): 31 in., 78 cm.
• Vertical movement: (RADIATION DETECTOR): 15.7 in., 40 cm. motorized
• Horizontal travel: (C-ARM): 7.9 in., 20 cm
• Panning movement (C-ARM): 12.5
• Pivot rotation, (C-ARM): 190 °
• DICOM COMPATIBLE (Focal spot size, mm): Yes

Generator

• Power rating (X-RAY GENERATOR): 2.3 kw @ 100 kvp
• mAs RANGE (X-RAY TUBE): 1-150 in 23 steps
• Snapshot function (MONITOR): 0.2-23 mA
• Kv range (X-RAY GENERATOR): 40
• Ma range (IMAGING SYSTEM): 0.2-23
• Kv range (X-RAY GENERATOR): 40
• EXPOSURE TIME: (MICROMANIPULATORS): .5-10 sec
• Pulsed fluoroscopy (X-RAY GENERATOR): Yes
• Abs control (MONITOR): Exposure, TV iris, camera gain
• Aec (X-RAY GENERATOR): mAs
• Pulses per sec (MONITOR): Up to 15s

Collimator:

• Iris collimation with dual opposing semitransparent leaf shutters allow elliptical, round and rectangular collimation
• Minimum beam size < 5 X 5 cm²
• Iris and shutters are continuously variable
• All functions remotely controlled from the C-Arm control panel

Dimensions:

• H x W x D of C-arm frame, cm (in): 68 in. x 32 in. x 68 in.,173 cm. x 81 cm. x 173 cm.
• Weight: 520 lbs. (236 kg.) chassis, 395 lbs. (180 kg.) monitor cart
