DESCRIPTION

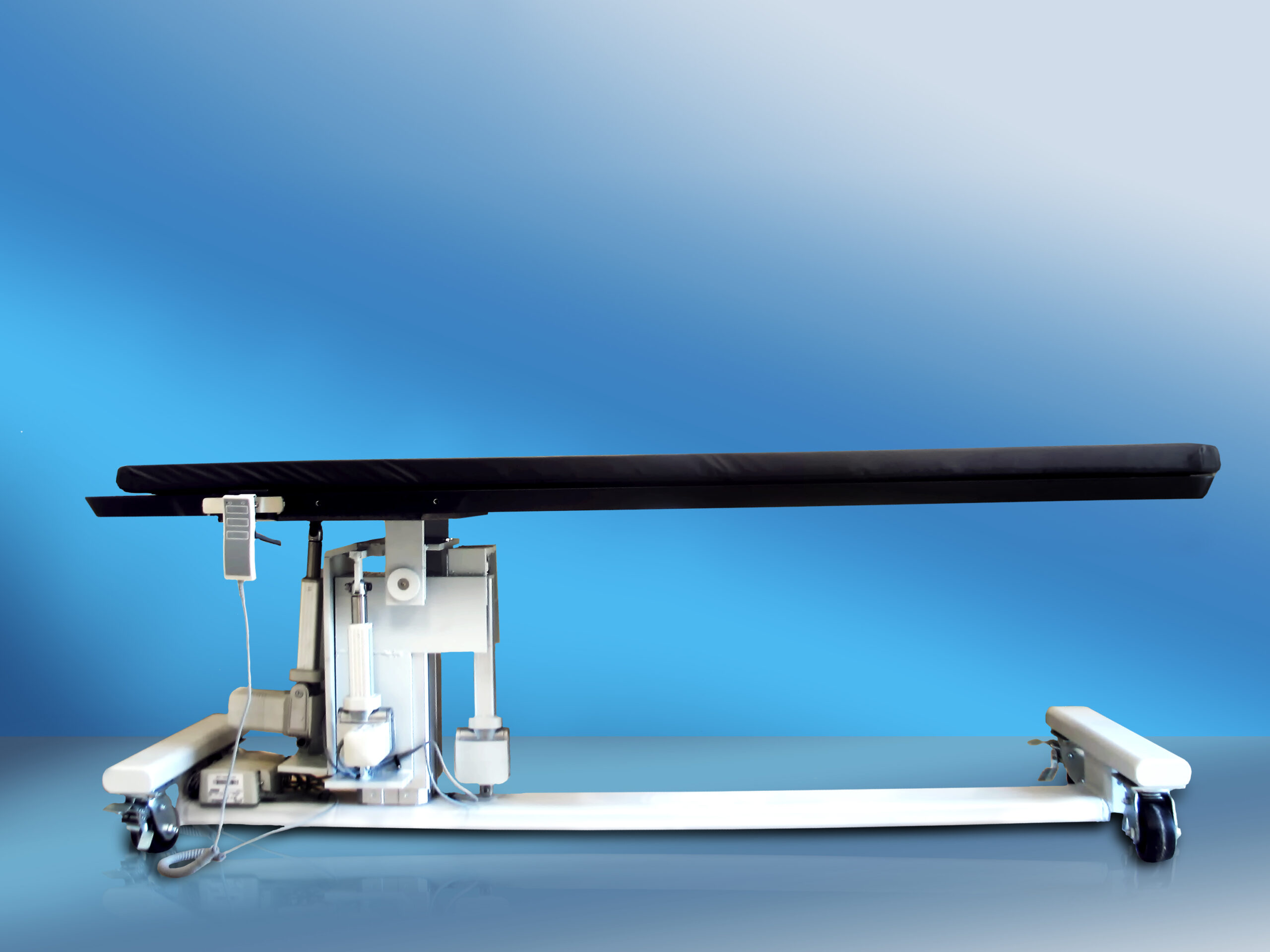

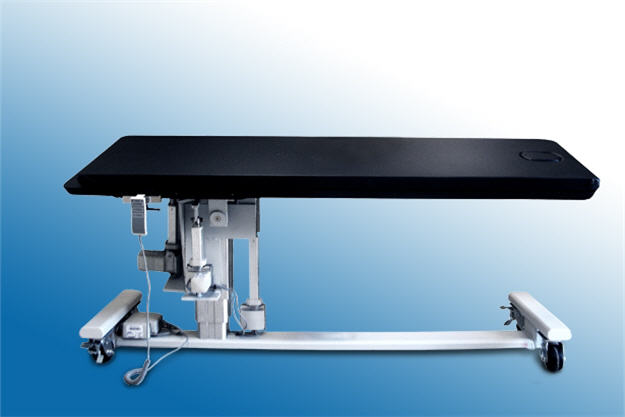

STI Streamline C-Arm Table

  • Designed for high patient throughput for surgery centers, pain management centers, and other multidisciplinary medical facilities, the Streamline series imaging tables are the lowest priced tables in the imaging table industry.

FEATURES

  • Carbon fiber, diving board style for easy C-arm access
  • Large patient capacity – high-end actuator motor supports 500lb loads
  • An 84″ length can accommodate even the tallest of patients
  • A 24″ top eliminates the need for arm boards
  • 2″ thick, high quality patient comfort pad
  • Facial cut-out for prone procedures
  • Light weight – easy to physically move the table within the room or from room to room
  • Simple to use, high quality wheel locks
  • Extreme low position makes boarding patients fast, easy and safe

SPECIFICATIONS

  • The Streamline Series imaging tables come in five different models, with each offering a different selection of motorized adjustments:
    • Streamline 1 – offers Height adjustment only.
    • Streamline 2 – offers both Height and Lateral Tilt adjustments.
    • Streamline 3 – offers Height, Lateral Tilt, and Trendelenburg adjustments.
    • Streamline 4 – offers four different adjustments: Height, Lateral Tilt, Trendelenburg, and Longitudinal Travel.
    • Streamline 5 – offers five different adjustments: Height, Lateral Tilt, Trendelenburg, Longitudinal Travel, and Lateral Travel.
  • Patient Capacity: 500lb(227kg)
  • Tabletop and Mattress attenuation 1.6mmAl.(+/-.2mm tolerance)
  • Radiolucent Area: 56”L x 24”W unobstructed
  • Tabletop: 84”L x 24”W x 1.62”T
  • Table Dimensions: 86″L x 26”W

BROCHURES



STI Streamline C-Arm Table Brochure »
