DESCRIPTION

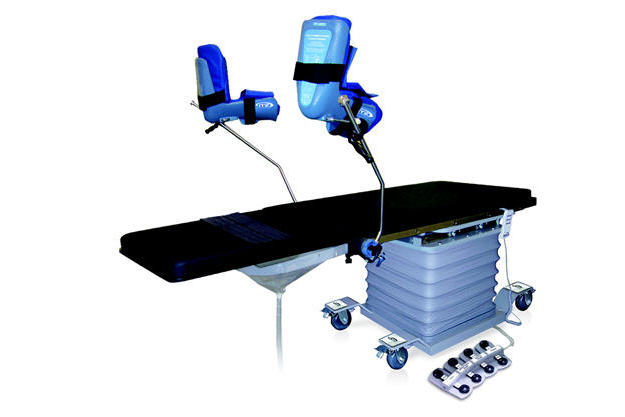

STI URO-MAX Urology Table

  • The URO-MAX C-Arm imaging table offers an excellent solution for real-time urological X-ray procedures. The cantilevered, carbon fiber, radiolucent top areas allow full fluoroscopic visualization and unobstructed C-Arm positioning. The URO-Max is highly versatile with many movement options and accessories. The carbon fiber leg extension accessory can quickly turn your Urology table into a procedure table for pain management and other C-Arm guided procedures.

STI URO-MAX C-ARM OPERATING TABLE FEATURES

  • Carbon fiber with integral facial cutout section
  • Leg extension easy to remove and very light weight
  • Diving board style for easy C-Arm access
  • Large patient capacity – 500lb pound load
  • A 2” patient high quality comfort pad
  • Light weight – easy to physically move the table
  • Our 24” wide top eliminates the needs for arm boards
  • Easy patient transfer to table
  • Low height for patient boarding
  • Protective bellows between the base and top
  • Any OR accessory can be rigidly attached to the tabletop
  • Remove and install optional leg extension while fluid catcher is in place

SPECIFICATIONS

  • The URO-MAX Series of imaging tables come in five different models, with all offering varying selections of motorized adjustments:
    • URO-MAX 1 offers Height adjustment but no other adjustments (28″ to 40″)
    • URO-MAX 2 offers both Height and Lateral Tilt adjustments (tilt of +/- 170)
    • URO-MAX 3 offers Height (29″ to 41″), Lateral Tilt (+/- 170 ), and Trendelenburg (+/- 200) adjustments
    • URO-MAX 4 offers Height (30″ to 40″), Lateral Tilt (+/- 170), Trendelenburg (+/- 200), and longitudinal travel (10″, +/- 5″) adjustments
    • URO-MAX 5 offers Height (32″ to 42″), Lateral Tilt (+/- 170), Trendelenburg (+/- 200), longitudinal travel (10″, +/- 5″), and lateral travel (10″, +/- 5″) adjustments

For all URO-MAX series imaging tables that come with motorized movements, the system includes a remote control for use when positioning the patient. The height buttons support raising and lowering the tabletop. The Lateral Tilt buttons control the lateral angle of inclination. The Trendelenburg buttons control the angle of inclination of the head end. The longitudinal travel moves the tabletop in the longitudinal direction. And the Lateral Travel moves the tabletop in the lateral direction. The URO-MAX series imaging tables with motorized movements require 120 VAC power for operation.

  • Tabletop and mattress attenuation 1.6mm Al.(+/-.2mm tolerance)
  • Table Dimensions: 55″L x 24”W
  • Tabletop Material: Carbon fiber skin/foam core with integral facial cut-out
  • Tabletop: 55”L x 24”W x 1.62”T
  • Radiolucent Area: 27”L x 24”W unobstructed
  • Patient Capacity: 500lb (227kg)

BROCHURES



STI URO-MAX Urology Table Brochure »
