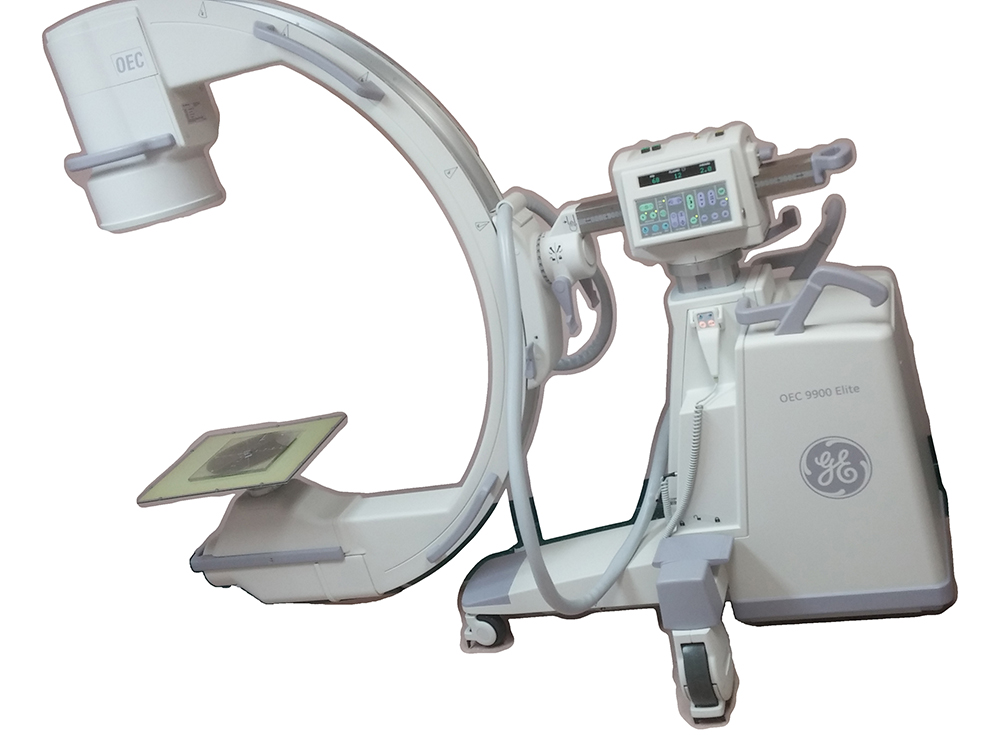

GE OEC 9900 Elite Mobile C-Arm

GE OEC 9900 Elite Mobile C-Arm

Bluestone Diagnostics, Inc. can provide the latest model of GE Healthcare c-arms – the GE OEC 9900 Elite c-arm system. GE Healthcare has set the standard for c-arms and the OEC 9900 is no different, incorporating leading edge performance and enriched technology. The OEC 9900 Elite series touts higher image resolution, monitors that offer advanced articulation and improved ergonomics among its many attributes: Highlights include:

• 1k2 high resolution imaging technology on a mobile system
• Featuring precision imaging Dynamic Range Management (DRM) for uncompromising image quality
• Flat panel monitors on an articulating arm allow viewing of images from anywhere in the room
• Simple user interface reduces procedure time to improve efficiency
• Preset imaging profiles optimize I.Q. by enhancing features of interest
• Remote service connectivity
• Upgraded ergonomics

Buy / Sell All Models

GE OEC 9900 Elite Mobile C-Arm Specifications

Generator:

• 60kHz high frequency
• 15kW full-wave
• Up to 120kVp
• Up to 75mA for radiographic film exposure
• Continuous high level fluoro (HLF) up to 20mA
• Digital spot up to 75mA

X-Ray Tube:

• Rotating anode X-ray tube
• 0.3mm and 0.6mm focal spots
• Anode heat capacity: 300,000 HU (per IEC 60613)
• Anode cooling rate: 85,000 HU/min
• Housing heat capacity: 1,600,000 HU
• Standard housing cooling: 15,000 HU/min
• Passive housing cooling system: 22,500 HU/min (Standard on 12 inch (31 cm) I.I. systems. Optional on 9 inch (23 cm) systems

Digital Image Rotation

• Digitally adjusts image display
• Automatic image update
  • Image rotation
  • Image reversal (side-to-side)
  • Image invert (top-to-bottom)
• Image positioning without additional exposure

PreView^TM Collimator:

• On-screen collimator position indication
• PreView^TM iris collimator
• PreView^TM Tungsten rotatable double leaf collimator
• Adjusts collimators without X-ray exposure

Fluoro Mode:

• kVp range: 40 – 120
• mA range: 0.2 – 10 mA normal mode 1.0 – 20 HLF (high level fluoro)
• Auto and manual flouro modes
• AutoTrak^TM ABS varies mA, kVp and camera gain

Pulsed Fluoro Mode:

• kVp range: 40 – 120 kVp
• mA range: 0.2 – 10
• Pulse rate: 1, 2, 4, 8
• Pulse width: 25 or 50 milliseconds
• AutoTrak^TM ABS, mA, kVp, camera gain
• Reduces X-ray to patient and operator

High Level Pulsed Fluoro:

• kVp range: 40 – 120 kVp
• mA range: 0.2 – 40
• Pulse rate: 1, 2, 4, 8
• Pulse width: 25 or 50 milliseconds
• AutoTrak^TM ABS, mA, kVp, and camera gain

Digital Spot Mode:

• kVp range: 40 – 120
• mA range: Up to 75
• Automatic exposure termination and automatic image save Radiographic Mode

Radiographic Mode

• mA range: up to 75
• mAs range: up to 300
• Computer controlled exposure time
  • 10″ x 12″ (24cm x 30cm) for 9″ I.I.
  • 14″ x 14″ (35cm x 35cm) for 12″ I.I.

Video Imaging System

9″ Image Intensifier (optional):

• Tri-mode 9″/6″/4.5″ (23cm/15cm/11cm) image intensifier
• Minimum central resolution (at the monitor):
  • 9″ (23cm): 2.2 lp/mm
  • 6″ (15cm): 3.0 lp/mm
  • 4.5″ (11cm): 3.5 lp/mm
• DQE: 65% (typical)

12″ Image Intensifier (optional):

• Tri-mode 12″/9″/6″ (31cm/23cm/15cm) image intensifier
• Minimum central resolution (at the monitor):
  • 12″ (31cm): 1.6 lp/mm
  • 9″ (23cm): 2.2 lp/mm
  • 6″ (15cm): 2.6 lp/mm
• DQE: 65% (typical)

Precision imaging with Dynamic Range Management (DRM) enhances features of interest while attenuating background noise:

• Preset Imaging Profiles
  • 9800
  • General
  • Orthopedic
  • Spine
  • Cardiac
  • Vascular
  • Bolus Chase

AutoTrak^TM Automatic Brightness Stabilization (ABS):

• Automatically seeks the subject anatomy anywhere within the imaging field and selects the optimum imaging technique
• Automatically adjusts to anatomical size and location
• Provides uniform image quality throughout entire image
• Simplifies operation

Image I.Q.:

• Smart Window
  • Dynamically senses the collimator position and automatically adjusts brightness and contrast to produce high image quality
• Smart Metal
  • Allows user to adjust automatic brightness and contrast sensitivity levels to metal
  • Provides optimum image quality even when metal is introduced to the field
• Tungsten Collimator
  • Denser collimator limits X-ray exposure area
  • Reduces scatter radiation
  • Improves image detail

Video Camera:

• High resolution 1k x 1k CCD camera
• Full frame capture
• Motorized rotation
• On-screen orientation indicator (realtime feedback without fluoro)
• Left-right image reversal
• Top-bottom image invert

Video Display:

• Dual 18″ (46cm) display anti-glare, LCD flat panel monitors mounted on an articulating arm
  • 22″ horizontal travel
  • 7° up/10° down
  • Monitors viewable from all four sides of workstation
  • Horizontal and vertical viewing angle 170°
• 700 CD/M2 maximum brightness
• 1280 x 1024 high resolution monitors
• Ambient room-light compensation
• Integrated color monitor for display of VGA, DVI, DVI-D, S-VHS, and SDI-SD formats (optional)

Configurations

GSP Platform:

• 1k x 1k x 16 bit image processing
• Preset Imaging Profiles
  • 9800
  • General
  • Orthopedic
  • Spine
• Noise filter with on-screen indicator
• Minimal difference spatio-temporal noise filter (MDST)
• Real time dynamic range management (DRM)
• Automatic digital brightness and contrast control
• Manual digital brightness and contrast control
• Negate mode
• Save and auto-save feature
• Swap and auto-swap feature
• Patient information
  • Examination list
  • Customized patient information
• Customize functions
  • Workstation set-up
  • Mainframe set-up
  • Patient information set-up
  • Date/time set-up
  • DICOM interface set-up
• Last image hold
• 63 image storage
• CD/DVD burner with DICOM viewer for displaying images on PC platforms
  • 512 x 512 or 1k x 1k
• Integrated DICOM interface (store, print, worklist, and query/retrieve)
• HIPAA SecureView®
  • Password protection
  • Blank screen function
  • Delete all

ESP Platform:

Includes all the GSP features plus:

• 1000 image storage
• Zoom and roam function
• Image annotation
• Measurement software

ESP Platform with 15fps Digital Disk:

Includes all the ESP features plus:

• 15fps Dynamic digital disk (60 Hz) 12fps (50 Hz)
  • Recording/playback rate: 1, 2, 4, 8, 15fps (60 Hz) 12fps (50 Hz)
  • Automatic image playback capability
  • Frame-by-frame review
  • Recording time: 10 minutes @ 15fps (60 Hz) 12 fps (50 Hz)

PMCare Platform:

Includes all the ESP features plus:

• Real-time subtraction
• Digital subtraction (DSA) angio
• Peak opacification
• 8fps Dynamic digital disk
  • Recording/playback rate: 1, 2, 4, 8fps
  • Recording time: 5 minutes @ 8fps
  • Automatic image playback
  • Frame-by-frame review

Basic Vascular Platform:

Includes all the PMCare features plus:

• Vascular preset imaging profile
• Roadmapping
• Re-registration
• Variable landmarking
• Mask save/recall

Vascular MTS Platform:

Includes all the Basic Vascular features plus Motion Tolerant Subtraction (MTS) plus:

• Bolus chase preset imaging profile
• Digital cine pulse mode
  • 30 pulses/sec 60 Hz (25 pulses/sec 50 Hz)
  • Up to 150mA
  • 10ms pulse width
• 30fps Dynamic digital disk 60 Hz (25 pulses/sec, 50 Hz)
  • Recording/playback rate: 1, 2, 4, 8, 15, 30fps 60 Hz (1, 2, 4, 8, 12, 25, 50 Hz)
  • Recording time: 10 minutes @ 30fps 60 Hz (time depends on record frame rate) (25 fps, 50 Hz)

Cardiac Platform with Interventional Vascular Capability:

Includes all the Vascular MTS features plus:

• Cardiac preset imaging profile
• Super “C” configuration (9″/23cm I.I. only)
• Single leaf curved collimator
• Three pedal footswitch

Additional Features

Hardcopy Options:

• Integrated film/paper printer
  • No film developing required
  • 8″ x 10″ (20.3 cm x 25.5 cm) laser quality film/paper
  • Multi-format, 1, 2, 4 on 1
  • Multi-copy capability
• Thermal printers
• Integrated DICOM interface (storage class/print class/query work-list)*

User Interface:

• Entire system is computer controlled and software upgradeable
• Touchscreen control simplifies operation
• Automated system operation requires minimum operator interface
• Multi-functional controls
  • Footswitch
  • IR remote (optional)
  • Hand-held control
• Simplified keyboard with integrated touchpad
• Multi-purpose image directory
  • Retrieve and review images
  • Compose hardcopy films
  • Copy images
• X-ray dose summary

Uninterruptible Power:

• Orderly shutdown

Electrical Specifications:

• Input power (60 Hz or 50 Hz) 9900 Elite
  • 120V @ 12 A
  • 200V, 220V, 230V, 240V @ 10 A
