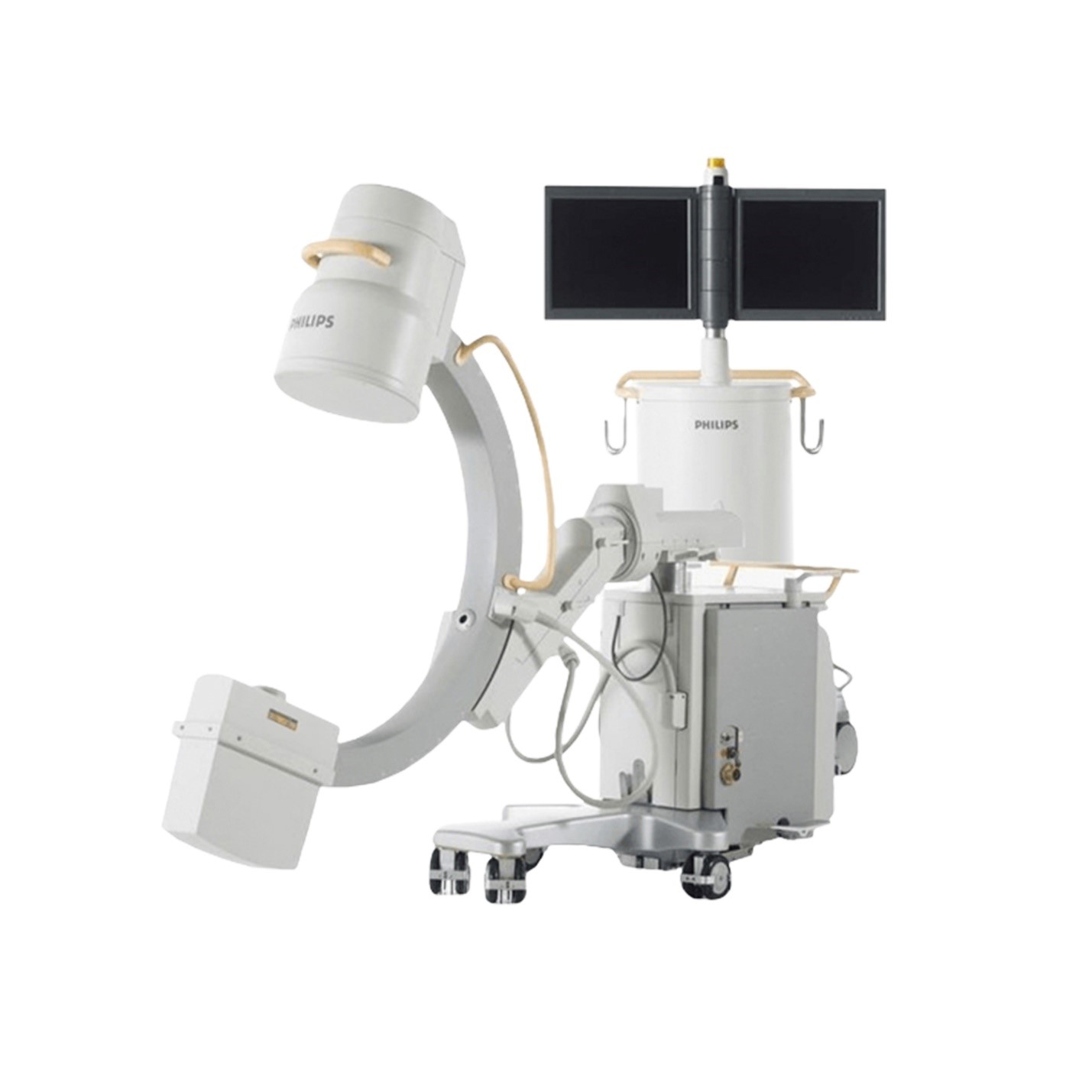

Philips BV Pulsera C-Arm

The PV Pulsera Philips c-arm is a versatile system that is capable of excelling during the most demanding interventional procedures such as Pain Management, General, Orthopedic, Vascular, NeuroVascular and Cardiac surgeries. Incorporating a robust fluoroscopy system with a high resolution CCD camera, the Philips BV Pulsera offers superb image quality and exceptional penetration power. The Philips Pulsera provides outstanding performance while offering low radiation dosage. Highlights include:

• Pulsed acquisition (30 pulses/sec) for better images at a lower dose
• Rotating anode power to penetrate larger patients
• 9″ or 12″ image intensifier
• Excellent maneuverability

Inquire All Models

BV Pulsera Philips C-Arm Specifications

Generator:

• 80 kHz High frequency
• 7.5 kW full-wave
• Up to 120 kVp
• Up to 60 mA for radiographic film exposures
• Continuous fluoro boost mode up to 20 mA
• Pulsed fluoro mode
• Pulsed fluorography mode up to 60 mA
• Full power from outlet:
  • 50 Hz or 60 Hz
  • 100V-20A to 240V-10A

X-Ray Tube:

• Rotating anode X-ray tube
• Focal spots: 0.3 mm and 0.6 mm
• Anode heat capacity: 300,000 HU
• Anode cooling rate: 70,000 HU/min
• Housing heat capacity: 1,900,000 HU
• Anode diameter: 2.8″
• Anode angle: 10°

Collimator:

• Iris collimation with dual opposing lead shutters allowing elliptical, round and rectangular collimation
• Minimum beam size < 5 X 5 cm²
• Iris and shutters are continuously variable
• All functions remotely controlled from the C-Arm control panel

Fluoroscopy Mode:

• Focal spot: 0.3 mm and 0.6 mm
• kVp range: 40 – 120 kVp
• mA range: 0.2 – 20 mA continuous High Definition fluoro boost mode
• Auto and manual modes
• Continuous or Pulsed operation
• APF varies mA, kVp and camera gain
• User specific APF tables

Pulsed Fluoro Mode:

• Half Dose Fluoroscopy
• Quarter Dose Fluoroscopy
• Focal spot: 0.6 mm
• kVp range: 40 – 120 kVp
• mA range: 0.4 – 12 mA
• Pulse rate: 6.25 or 12.5 pulses per second
• Pulse width: 11 to 37 milliseconds
• Computer controlled APF, mA, kVp and camera gain

Pulsed Fluoroscopy Mode:

• Focal spot: 0.6 mm
• kVp range: 40 – 110 kVp
• mA range: Up to 60 mA
• Pulse rate: 3 to 30 pulses per second. (optional)
• Pulse width: 8.0 / 9.5 / 11.1 milliseconds
• Computer controlled camera iris, mA, kVp, & camera gain

Digital Exposure Mode:

• Focal spot: 0.6 mm
• kVp range: 40 – 110 kVp
• mA range: 1.0 – 75 mA

Radiographic Mode:

• Focal spot: 0.6 mm
• kVp range: 40 – 120 kVp
• Fixed 60 mA
• 0.6 mm – mAs range: 3.2 – 125 mAs

Video Imaging System

9″ Image Intensifier:

• Tri-mode 9″/7″/5″ image intensifier
  • 9″: 1.6 lp/mm
  • 7″: 2.1 lp/mm
  • 5″: 2.9 lp/mm
• DQE: 65% (typical)

12″ Image Intensifier:

• Tri-mode 12″/9″/7″ image intensifier
  • 12″: 1.2 lp/mm
  • 9″: 1.4 lp/mm
  • 7″: 2.0 lp/mm
• DQE: 65% (typical)

Video Camera:

• High resolution CCD camera
• 525 line/frame
• Full frame capture
• 360° motorized rotation
• Left-right image reversal
• Top-bottom image reversal
• Negative mode
• Computer controlled features: (optional)
  • Gain
  • Blanking
  • Camera iris

Video Display:

• Dual 17″ high resolution, anti-glare, anti-static
• Ambient room light sensor
• Multi-LED X-ray “ON” indicator

Additional Features

Hardcopy Options:

• Thermal printer (optional)
• DICOM (optional)
• Image Capture Device (optional)
• Laser aiming device (optional)

Specialty Packages Available:

• Extended processing
• Vascular functions
• Extended vascular functions
• Cardiac Pulsed functions

Physical Specifications

C-Arm Dimensions:

• Height: 71″/91″ (1805/2305 mm)
• Width: 35″ (880 mm)
• Length: 76″ (1930 mm)
• Weight: 695 lbs. 315 kg

Workstation Dimensions:

• Height: 69″ (1760 mm)
• Width: 32″ (800 mm)
• Depth: 37″ (925 mm)
