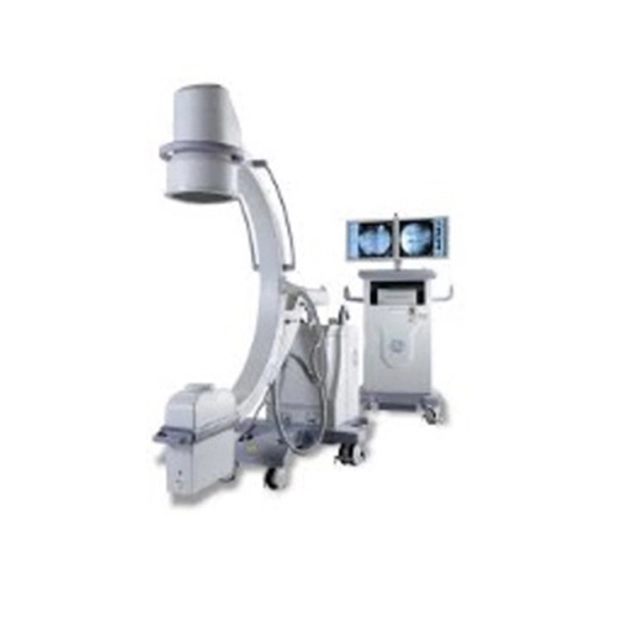

GE OEC Brivo Plus

The GE OEC Brivo Plus provides automated features that can improve your productivity and reduce uncertainty. The Brivo Plus delivers easy-to-use reliable results during each phase of surgery, from boot-up to cleanup. The Brivo easily brings images into sharp focus using intelligent point-and-shoot technology at the lowest reasonably achievable dose. All of the integrated automated features mean less of a learning curve, fewer retakes, and less need to move the patient for better results.

Highlights:

• Fully digital camera.
• High-performance image intensifier.
• 16-bit image processing.
• Premium dual leaf collimator, reducing scatter to a lower dose.
• Great positioning and optional laser aimer for targeting.
• Touchscreen interface.
• 100,00 image storage capacity.
• Membrane-covered keyboard.
• Thumbnail image directory.

GE OEC Brivo Plus Specifications

C-Arm

• SID: 4″ (100 cm)
• Free Space in Arc: 7″ 78 cm)
• Depth in Arc: 26″ (66 cm)
• Orbital Rotation: 120° (90° underscan / 30° overscan)
• Lateral Rotation: 410° (+205° / -12.5°)
• Lateral Height: 2″ (102 cm)
• Wig / Wag: 20° (+12.5° / – 12.5°)
• Horizontal Travel: 8″ (20 cm)
• Vertical Travel: 5″ (44.5 cm)

X-Ray System – Generator

• 40kHz high frequency
• 2kW monoblock
• Housing heat capacity: 900,000HU
• Housing Cooling Rate: 12,500HU/min
• Up to 110kVp
• Up to 20mA for radiographic film exposure
• Continuous high-level fluoro (HLF) up to 12mA
• Digital spot up to 16mA

X-Ray Tube

• Stationary anode X-ray tube
• Dual focal spot:
  • Small Focal Spot: 0.6mm x 1.4mm
  • Large Focal Spot: 1.4mm x 1.4mm
• Tube assembly total filtration: 35mm Al
• Anode Heat Capacity: 76,000HU
• Maximum anode cooling rate: 37,000HU/min
• On-screen tube heat capacity indicator

PreView Collimator

• On-screen collimator position indication
• PreView iris collimator
• PreView tungsten rotatable double leaf collimator
• Adjusts collimators without X-ray exposure
• Can reduce X-ray dose to patient and operator

Low Dose Pulsed Fluoro

• kVp range: 40 -110
• mA range: 1 – 2
• Pulse rate: 1, 2, 4, 8 PPS
• Auto and manual fluoro modes

High Level Pulsed Fluoro

• kVp range: 40 -110
• mA range: up to 12
• Pulse rate: 1, 2, 4, 8 PPS
• Auto and manual fluoro modes

Digital Spot Mode

• kVp range: 40 – 110
• Up to 10mA for 100-120V system
• Automatic exposure termination and automatic image save

Radiographic Mode

• mA range: 20 (10 for 100-120V system)
• mAs range: up to 80 (40 for 100-120V system)
• Computer controlled exposure time
• Film cassette holder: 10” x 12” (25.4cm x 30.5cm)

Video Imaging System
Precise-Imaging features

• AutoTrak
  • Automatically seeks the subject anatomy anywhere within the imaging field and selects the optimum imaging technique
  • Automatically adjusts to anatomical size and location
  • Provides uniform image quality throughout the entire image
• Simplifies operation
  • Smart Window
  • Dynamically senses the collimator position and automatically adjusts brightness and contrast to produce high image quality
• Smart Metal
  • Automatically detects the metal in the field and optimizes image quality
  • Allows the user to adjust automatic brightness and contrast sensitivity levels to metal
  • Provides optimum image quality even when metal is introduced to the field

9” Image Intensifier

• Tri-mode 9”/6”/4.5” (23cm/15cm/11cm) image intensifier, The central resolution (typical value at image intensifier):
  • 9” (23cm): 52 lp/cm
  • 6” (15cm): 58 lp/cm
  • 5” (11cm): 68 lp/cm
• Minimum central resolution (at monitor):
  • 9” (23cm): 2.2 lp/mm
  • 6” (15cm): 3.0 lp/mm
  • 4.5” (11cm): 3.5 lp/mm
  • DQE: 65% (typical)

Tungsten Collimator

• Denser collimator limits X-ray exposure area
• Reduces scatter radiation
• Improves image detail

Tungsten Collimator

• Denser collimator limits X-ray exposure area
• Reduces scatter radiation
• Improves image detail

Carbon Fiber Grid

• 60L/cm 10:1 anti-scatter grid
• Reduces scatter radiation effect
• Improves image detail

Video Camera

• High-resolution 1k x 1k CCD camera
• Full digital interface
• Variable gain control

Video Display

• • Dual medical 19” (48cm) monochrome LCD with anti-glare panel.
  • • Tilt motion: 7 degree up / 10 degree down
    • Swivel motion: 180 degree
    • Viewing angle: 170 degree horizontal and vertical
  • Maximum brightness: 1000 Cd/m2
  • Maximum contrast: 900:1
  • 1280 x 1024 high resolution
  • Digital Visual Input (DVI) interface for external monitors

Image Processing

• • Measurement Software
    • Distance measurement
    • Angle measurement
    • Multi-unit support (French, mm, Inch)
    • User calibration
  • Image Annotation
    • Arrows and markers
    • Comments
    • Cropping
    • Image positioning without additional exposure
  • • HIPAA SecureView
      • Password protection
      • Blank screen function
      • • Manual digital brightness and contrast control
        • Auto-adaptive non-uniformity correction
        • Image edge enhancement
        • Image negate mode
        • Image save and auto-save
        • Image swap and auto-swap
        • Last image hold (LIH)
        • Image zoom and roam
        • Left-right image reversal
        • Top-bottom image invert
        • Digital Image Rotation
        • 360 degree real-time rotation for live and static imagesDelete all100,000 images storage
          • 1k x 1k x 16 bit image processing
          • Dynamic recursive filter with adaptation to motion
            • Allows the user to adjust noise filter levels to produce high image quality

          –     Provides optimum image quality even when motion is introduced to the field

          –     Automatic digital brightness and contrast control

  Exam Management

  • Patient information
    • Examination list
    • Customized patient information
  • X-ray DAP/Dose display & summary
  • X-ray DAP/Dose summary export & print out
  • Full DICOM interface
    • Storage & commitment
    • Print
    • Work-list
    • Radiation Dose Structured Report (RDSR)
    • Query & Retrieve
    • MPPS
  • Wireless DICOM

Brilliant-Dose Management Platform

• High-resolution 1k x 1k CCD camera
• Full digital interface
• Variable gain control

Additional Features

Other Image Storage Options

• CD/DVD writer (Optional)
• USB memory stick port
• Integrated DICOM storage

Hardcopy Options

• Integrated film/paper printer (Optional)
• No film developing required
• DICOM printer support
  • Multi-format, 1, 2, 4 on 1
  • Multi-copy capability
  • Radiographic film cassette holder (Optional)

• Pediatric Application Kit

  • Removable grid (Optional)
  • Additional filter (Optional)
• Integrated Uninterruptible Power
  • Patient Image data protection
  • Orderly shutdown
• Electrical
  • Input power (60 Hz or 50 Hz)
  • 100V/110V/120V @ 20A
  • 200V @ 12A
  • 220V/230V/240V @ 10A
• Operating Range
  • Temperature: 10° to 40°C
  • Humidity: 20%-80% non-condensing

Weight and Dimensions

• Workstation
  • Height: 7″ (167 cm)
  • Width: 4″ (90 cm)
  • Depth: 25″ (64 cm)
  • Weight: 375 lbs (170 kg)
  • Monitor Swivel: ±90°
  • Monitor Tilt Motion: +7° / -10°
• Mainframe
  • System Height: 67.1″ (170.5 cm)
  • System Width: 30.7″ (78 cm)
  • System Length: 70.3″ (179 cm)
  • Weight: 573 lbs (260 kg)
