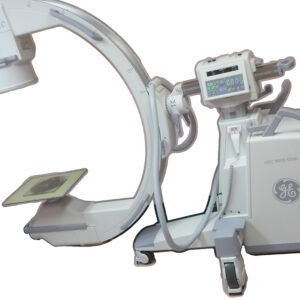

GE OEC Elite with 12″ Image Intensifier

Category:

The GE OEC Elite with a 12” image intensifier was designed to enhance surgical efficiency while delivering superb image quality. The OEC Elite allows you to manage dosages with profiles and control features and operates with enhanced ease-of-use and efficiency. This system is ideally suited for a range of surgical needs including orthopedics, gastrointestinal, endoscopic, urologic, neurologic, critical care, and emergency procedures.



Highlights:

  • Clear 1k x1k x 16 bit image processing at 30 fps.
  • 12-Inch image intensifier detector.
  • Optional laser aimer to position the detector over the anatomy of interest.
  • Removable anti-scatter grid
  • 30% less force needed to maneuver and position than previous models.
  • Advanced cooling technology.
  • Low profile X-ray tube.
  • Crisp high-bright anti-glare 27” touchscreen display.


Image Acquisition
  • 12-Inch Image Intensifier

    • Tri-mode 12”/9”/6” image intensifier
    • Minimum central resolution (at monitor):
      • 12”: 1.6 lp/mm
      • 9”: 2.2 lp/mm
      • 6″: 2.6 lp/mm
    • DQE: 65% (typical)
    • Removable grid

Image Processing
  • 1 k x 1 k x 16 bit: image intensifier
Generator
  • 60 kHz high frequency
  • 15 kW power
  • Up to 120 kVp
  • Continuous high level fluoroscopy (HLF) up to 20 mA
  • Pulsed HLF up to 40 mA
  • Digital spot up to 75 mA
  • Full power from a standard wall outlet
  • Patented battery buffered design

X-Ray Tube
  • Rotating anode X-ray tube
  • 0.3 mm and 0.6 mm nominal focal spots
  • Anode heat capacity: 300,000 HU
  • Anode cooling rate: 85,000 HU/min
  • Housing heat capacity: 1,600,000 HU/min
  • Housing cooling rate:
    • 21 cm CFD – 22,500 HU/min
    • 31 cm CFD – 31,000 HU/min
    • 9” I.I. – 22,500 HU/min

Mainframe
  • System Height: 73.8” (187.5 cm)
  • System Width: 33.5” (85.1 cm)
  • System Length: 81” (205.7 cm)
  • Weight: 660 lbs. (277 kg)

C-Arm
  • SID: 39.4” (100.1 cm)
  • Free space in arc: 31” (78.7 cm)
  • Depth in arc: 28” (77.1 cm)
  • Orbital Rotation: 115 ° (90° Underscan / 25° Overscan)
  • Lateral Rotation: 360° (+180° / -180°)
  • Wig/wag: 20°
  • Horizontal travel: 8” (20.3 cm)
  • Vertical Travel: 18” (45.7 cm)

Workstation
  • Height: 67.5” (171.5 cm)
  • Width: 34.1” (86.7 cm)
  • Depth: 25.8” (65.5 cm)
  • Weight: 428 lbs (194 kg)

Digital Image Orientation
  • Digitally adjusts image display for live and last image hold
  • Automatic image update preserves image orientation settings applied during live and last image hold for subsequent images
    • Image rotation
    • Live and last image hold rotated in real-time
    • On-screen display of rotation degrees
    • Image reversal (left-to-right)
    • Image invert (top-to-bottom)

PreView Collimator
  • On-screen collimator position indication
  • PreView iris collimator
  • PreView Tungsten rotatable double leaf collimator
  • Adjust collimators without X-ray exposure


Fluoroscopy Mode
  • kVp range: 40 – 120
  • mA range: 0.2 – 10 normal mode 0.2 – 20 HLF
  • Auto and manual fluoroscopy modes

Pulsed Fluoroscopy Mode
  • kVp range: 40 – 120
  • mA range: 0.2 – 10 normal mode 0.2 – 40 HLF
  • Pulse rate: 8 pps
  • Pulse width: 25 ms
  • Auto and manual pulsed fluoroscopy modes
  • Reduces X-ray dose to patient and operator

Digital Spot Mode
  • kVp range: 40 – 120
  • mA range: Up to 75
  • Automatic exposure termination and automatic image save

TechView Monitor
*Optional on image Intensifier modes
  • 10.4” (26.4cm) display, LCD flat panel monitor mounted on mainframe
    • 270° side/side rotation
    • 30° up/ 5° down tilt
    • Horizontal viewing angle 80°, Vertical viewing angle 70°
  • 800 x 600 resolution monitor

AutoTrak
  • Automatically seeks the subject anatomy anywhere within the imaging field
  • Selects the optimum imaging technique by varying mA, kVp, and gain
  • Automatically adjusts to anatomical size and location
  • Provides uniform image quality throughout the entire image

Image I.Q.
  • Smart Window – Dynamically senses the collimator position and automatically adjusts image brightness and contrast
  • Smart Metal – Adjusts brightness and contrast automatically and allows the user to adjust sensitivity levels for optimum image quality even when metal is introduced into the field
  • Tungsten Collimator – Denser collimator limits X-ray exposure area, reduces scatter radiation, and improves image detail

Connectivity
  • Wired Ethernet
  • USB data transfer
  • DVI-I output
  • Integrated film/paper printer (optional)*
  • Thermal printers

Video Monitor
  • 27 in (69 cm) LCD TFT color display
  • Anti-glare
  • 450 cd/m2 maximum brightness
  • Touch screen system control
  • 2560 x 1440 high resolution display
  • Integrated PIP window to display color
  • DVI-D input

User Interface
  • Touchscreen control simplifies operation
  • Automated system operation requires minimum operator interface
  • Multi-functional controls with a footswitch or hand-held control
  • Physical keyboard with integrated touchpad with a sealed silicone design for dust-free, contaminant-free and water-resistant use
  • Physical image control keypad
  • On-screen virtual keyboard and image control keypad
  • Multi-purpose image directory to retrieve and review images, copy image(s), or manual delete image(s)
  • Integrated DICOM interface
  • Radiation dose structured report (RDSR)
  • X-ray dose summary
  • Room-in-use indicator interface
  • SmartConnect allows workstation to operate independently of C-arm and connect/ disconnect C-arm when needed
