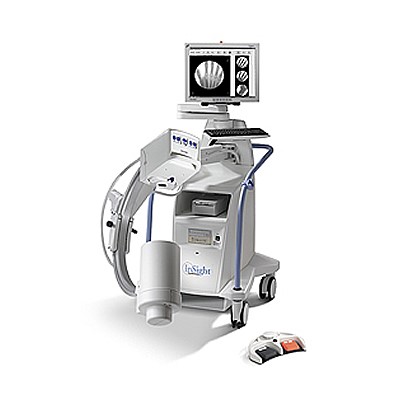

Hologic Insight 2 mini c-arm

Hologic Insight 2

Category:

The Hologic InSight 2 is a fully digital mostly Windows XP operating system fluoroscope, that was manufactured from 2007 to 2017. There are tons of these on the market and spare parts are readily available and will be for a long time. This unit is a workhorse and equipped with a standard 6”/4” image intensifier with excellent image quality. This system is a great choice for the doctor’s office, surgery center, sports medicine facility and joint injection center. We highly recommend this Mini C-Arm.

Highlights:

  • Outstanding precision and versatility in extremity surgery.
  • Combines tremendous maneuverability, ultra-fine fluoroscopy images, and automated adjustments that deliver optimum images.
  • Lightweight, flat screen monitor can be rotated and positioned with effortless ease.

Buy / Sell All Models

Specifications
C-Arm
  • Free Space: 14″ (36 cm)
  • Depth: 16″ (40.6 cm)
  • Orbital Rotation: 120°
  • Horizontal Travel: 23°
  • Vertical Travel: 23″ (58 cm)
  • Pivot Rotation: 380°
  • Panning Motion: 320°
X-Ray Source
  • Focal Spot Size: 0.045 mm
  • Tube kVp Range: 40 to 75 kVp
  • Tube Current Range: 0.020 to 0.100 mA
Image Intensifier
  • Dual Mode 4″ (10cm) and 6″ (15cm)
Image Storage
  • Permanent Hard Drive: 7,000 images
  • Removable Data Storage: USB port, CD/DVD-RAM drive
Imaging Features
  • Snapshot Continuous Cine (Digital) Recording
  • Imaging Features
  • Brightness/Contrast Control
  • Automated Image Processing
  • Real-Time Noise Reduction
  • Edge Enhancement Auto-Dose Control
  • Magnify-Zoom-Pan
Monitor
  • 20″ LCD Flat Panel
  • Touch Screen Sensitivity
  • Resolution: 1200 x 1600
  • HD Quality Display

X-Ray Power Control

  • Auto and Manual Mode
Printer Options
  • Small Format Thermal Printer
  • Large B/W Hybrid Graphic Printer

Image Matrix Size

  • 1k x 1k High Definition
Image Acquisition
  • Rate of 30 fps (standard imaging)
  • Rate of 25 fps (cine (digital) recording)
Footswitch Options
  • Triple Function Footswitch (standard)
Full DICOM Connectivity
  • DICOM Store / send / print / modality work list
Dimensions
  • Weight: 495 lbs.
  • Height: 66″ – Monitor in up position
  • Height: 54″ – Monitor in down position
  • Width: 28″
  • Width: 36″ – C in storage position
  • Length: 33″
