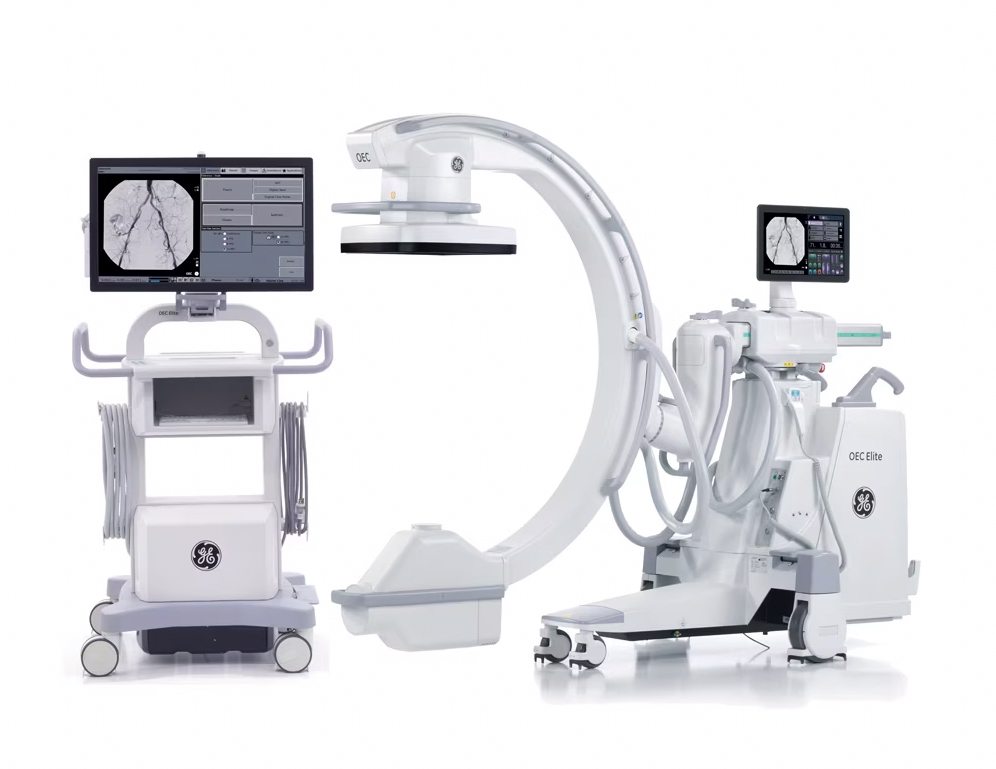

OEC Elite CFD C-Arm

Highlights

• Precision imaging with General Purpose Dynamic Range Management(GDRM)
• AutoTrak Automatic Brightness Stabilization(ABS)
• Expanded Surgical Platform (ESP)
• 4K Image Display
• PreView Collimator

Inquire All Models

Image Acquisition

21 cm CMOS Flat Panel Detector (CFD)

• Tri-mode 21 cm/15 cm/11 cm
• Nominal resolution (at display):
  • 21 cm: 3.5 lp/mm
  • 15 cm: 3.6 lp/mm
  • 11 cm: 3.7 lp/mm
• Active Matrix: 1536 x 1496 pixels
• DQE(0): 72%
• Pixel Pitch: 135.3 μm
• Removable grid with on-screen detection status

31 cm CMOS Flat Panel Detector (CFD)

• Tri-mode 31 cm/21 cm/15 cm
• Nominal resolution (at display):
  • 31 cm: 2.7 lp/mm
  • 21 cm: 2.8 lp/mm
  • 15 cm: 2.9 lp/mm
• Active Matrix: 1548 x 1524 pixels
• DQE(0): 72%
• Pixel Pitch: 198.0 μm
• Removable grid with on-screen detection status

Image Processing

• 1.5 k x 1.5 k x 16 bi

Generator

• 60 kHz high frequency
• 15 kW power
• Up to 120 kVp
• Continuous high level fluoroscopy(HLF) up to 20 mA
• Pulsed HLF up to 40 mA
• Digital spot up to 75 mA
• Digital Cine pulse- 15 or 30 pulses per second- Up to 150mA- 9 ms pulse width
• Full power from a standard wall outlet
• Patented battery buffered design

X-ray Tube

• Rotating anode X-ray tube
• 0.3 mm and 0.6 mm nominal focal spots
• Anode heat capacity: 300,000 HU
• Anode cooling rate: 85,000 HU/min
• Housing heat capacity: 1,600,000 HU
• Housing cooling rate:
  • Super C: 34,000 HU/min (405W)
  • Ergo C: 22,500 HU/min (268W)

Digital Image Orientation

• Digitally adjusts image display for live and last image hold
• Automatic image update preserves image orientation settings applied during live and last image hold for subsequent images
  • Image rotation- Live and last image hold rotated in real
  • time
  • On-screen display of rotation degrees
  • Image reversal (left-to-right)
  • Image invert (top-to-bottom)
• On-screen orientation indicator (real-time feedback without fluoroscopy)
• Fully digital with precise 1 degree rotation increments or auto-repeat for quick rotation

PreView Collimator

• On-screen collimator position indication
• PreView iris collimator
• PreView Tungsten rotatable double leaf collimator
• Adjust collimators without X-ray exposure

Fluoroscopy Mode

• kVp range: 40 – 120
• mA range: 0.2
  • 10 normal mode0.2
  • 20 HLF
• Auto and manual fluoroscopy modes
• AutoTrak ABS, mA, kVp
• Low dose mode

Pulsed Fluoroscopy Mode

• Pulse rate: 4, 8, 15 pps
• Pulse width: 19 ms to 34 ms
• kVp range: 40 – 120
• mA range: 0.2 – 28 normal mode 0.2- 40 HLF
• Auto and manual pulsed fluoroscopy modes
• AutoTrak ABS, mA, kVp
• Reduces X-ray dose to patient and operator
• Low dose mode

Digital Cine Pulse Mode

• kVp range: 40 – 120
• mA range: up to 150
• Pulse rate: 15 or 30 pps
• Pulse width: 9 ms
• AutoTrak ABS, mA, kVp

Digital Spot Mode

• kVp range: 40 – 120
• mA range: up to 75
• Automatic exposure termination and automatic image save

Image Processing

Precision imaging with General Purpose Dynamic Range Management(GDRM)

Enhances anatomy of interest while attenuating background features

• Preset Imaging Profiles- 9900- General- Orthopedic- Spine- Vascular- Bolus Chase- Cardiac

AutoTrak Automatic Brightness Stabilization(ABS)

• Automatically seeks the subject anatomy anywhere within the imaging field
• Selects the optimum imaging technique by varying mA, kVp, and gain
• Automatically adjusts to anatomical size and location
• Provides uniform image quality throughout the entire image

Image Quality

• Smart Window
  • Dynamically senses the collimator position and automatically adjusts image brightness and contrast
• Smart Metal
  • Adjusts brightness and contrast automatically and allows user to adjust sensitivity levels for optimum image quality even when metal is introduced into the field
• Tungsten Collimator- Dense collimator limits X-ray exposure area
  • Reduces scatter radiation
  • Improves image detail

Software Package

Expanded Surgical Platform (ESP)

• Preset Imaging Profiles
  • 9900
  • General- Orthopedic
  • Spine
• Noise filter with on-screen indicator
• Minimal difference spatio temporal noise filter (MDST)
• Real-time dynamic general purpose range management (GDRM)
• Automatic digital brightness and contrast control
• Manual digital brightness and contrast control
• Negate mode
• Save and auto-save feature
• Swap and auto-swap feature
• Patient information- Examination list- Customized patient information
• Set-up functions- Acquisitions- Image Profile- DICOM- Network- Regional- Security- Utilities
• Last image hold•40,000 image storage
• USB export with DICOM viewer for displaying images on PC platforms- Full-size or half-size- Web viewable- JPEG and BMP- DICOM compatible- OEC compatible- De-identify DICOM images- Remove patient information
• HIPAA Secure View- Password protection- Blank screen function- Delete all patient information
• Zoom and pan function
• Image annotation
• Measurement- Distance- Angles- Percent stenosis Technical Specifications OEC Elite CFD Technical Data
• On-screen free hand image marking- Mark or draw on images directly

PMCare

Includes all ESP software features plus:

• Real-time digital subtraction (DSA)
• Peak opacification
• 40,000 image storage
• Up to 8 fps Cine- Recording/playback rate: 4, 8 fps- Minimum recording time:30 minutes- Automatic image playback- Frame-by-frame review

Basic Vascular

Includes all PMCare software features plus:

• Vascular preset imaging profile
• Road mapping
• Re-registration
• Variable landmarking
• Mask save/recall

Vascular 15

Includes all Basic Vascular software features plus:

• Digital Cine pulse mode- 15 pulses/sec- Up to 150mA- 9 ms pulse width
• Up to 15 fps Cine- Recording/playback rate:4, 8, 15 fps-Minimum recording time: 60 minutes-Automatic image playback-Frame-by-frame review

Vascular MTS

Includes all Vascular 15 software features plus:

• Bolus chase preset imaging profile with Motion Tolerant Subtraction(MTS)
• Digital Cine pulse mode- 30 pulses/sec- Up to 150mA- 9 ms pulse width
• Up to 30 fps Cine- Recording/playback rate:4, 8, 15, 30 fps- Minimum recording time:60 minutes- Automatic image playback- Frame-by-frame review

Cardiac

Includes all Vascular MTS software features plus:

• Cardiac preset imaging profile
• Three pedal footswitch

Workstation

Connectivity

• Ethernet- one port
• Room interface- one port
• Video Output:- DVI-I (full screen requires dual link cable) – one port- Display port interfaces (configurable to left, right, full screen) – two ports
• Video Input:- DVI-D interface (PIP displays on right screen) – one port
• USB – three ports
• Wireless Data Transfer (optional)- Dual Band (2.4GHz and 5GHz)- Enterprise security – WPA, WPA2,PEAP
• Printers: Integrated film/paper/thermal (optional)

4K Image Display

• 32 in (81cm) Ultra high definition(UHD) Color Display
• Anti-reflection, anti-fingerprint
• Optically bonded cover glass
• Display mounted on an articulating arm- 45 in (114 cm) horizontal travel- 17 in (43 cm) vertical travel- 27 in (69 cm) forward travel- 5° up/5° down tilt- Display viewable from all four sides of workstation- Horizontal and vertical viewing angle 170°
• 600 cd/m2maximum brightness
• Touch Screen system control
• 3840 x 2160 UHD display
• Integrated PIP window to display color DVI-D input
